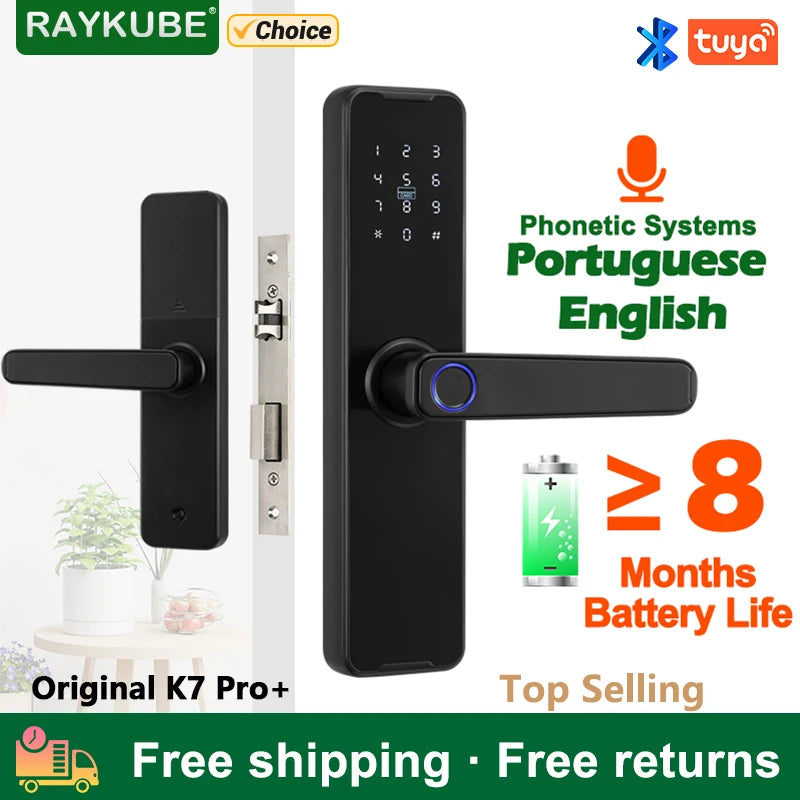

Overview-K7 Pro+
K7 pro+ is the latest version of K7 smart lock. Compared with K7, in terms of function, a Portuguese voice system has been added; In appearance, a larger fingerprint sensor has been made, and the fingerprint recognition speed is faster and more accurate.
Differences Between The Three Versions
Functions |
K7 |
K7 Pro |
K7 Pro+ |
||
Tuya Bluetooth / Fingerprint / Password / IC Card / Key Unlock |
Yes |
Yes |
Yes |
||
Tuya APP Management |
Yes |
Yes |
Yes |
||
Diameter of Fingerprint Sensor |
10 mm |
15 mm |
15 mm |
||
Fingerprint Recognition Speed |
Fast |
Faster |
Fastest |
||
Fingerprint Sensitivity |
High |
Higher |
Highest |
||
System Voices |
English |
English |
English / Portuguese |
Difference between Tuya Bluetooth version and Tuya WiFi version
Because the Wifi version needs to be connected to the smart lock, the battery consumption is faster compared to the Bluetooth version;The Tuya Bluetooth version of the K7 Pro+ has longer battery life, up to 8 months;
Features
5 unlock methods: Tuya APP/ Fingerprint / Password / Smart Card / Key Unlock
Tuya APP Remote Control,Bluetooth connection, convenient and fast
Add Bluetooth gateway also can connect to WiFi
Original K7 Pro+ supports Portuguese/English voice system
Support remote temporary password setting
Virtual Password Anti-peeping Unlock Supported
Mechanical keys and emergency power supply (USB) can be used when the door lock is out of power.
Compared with the Tuya Wifi version, the Tuya Bluetooth version of the K7 Pro+ has longer battery life, up to 8 months
Universal for left and right doors, suitable for 35-55mm door thickness.
24+ Sizes of Mortise Lock available
Original K7 Pro+ supports Portuguese/English voice system
Original K7 Pro+ supports the system voice in Portuguese and English, which is easy to install. The non original K7 Pro+version does not support Portuguese, all the original K7 Pro+ in RAYKUBE Official Store are original.

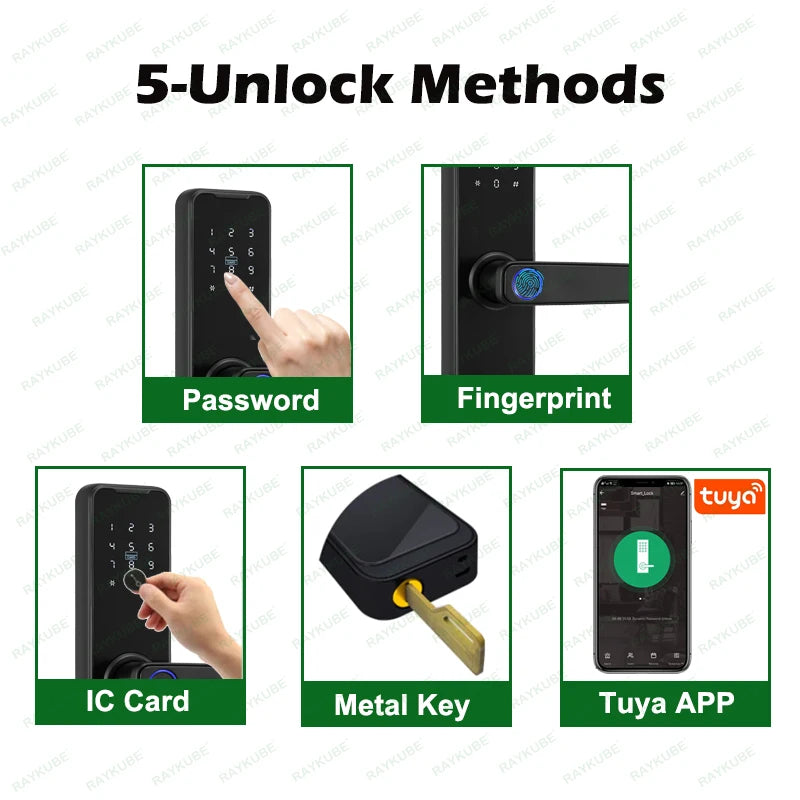

5 Unlock Methods
Tuya APP/ Fingerprint / Password / Smart Card / Key Unlock
Bigger Fingerprint Sensor
Semiconductor fingerprint technology, compared with K7, K7 Pro+ has a larger fingerprint sensor, therefore, fingerprint recognition is more accurate and fast
Press down the handle to open the door in one step without waiting. The fingerprint identification area is added with groove guiding design, which makes the hand feel more comfortable.
Tuya APP Temporary Password Remotely Unlock
Bluetooth connection; Easy to connect and save power
Add Bluetooth gateway also can connect to WiFi
When not at home, you can use the Tuya app to generate a temporary password to unlock
Encrypted Smart IC Card ,Easy to Use IC Card to Unlock The Door
Normally Open Mode, Setting More Convenient To Open The Door Frequently
Free Handle Design ,Prevents Violent Unlock
Prevent malicious pressing on the handle,damage the internal structure and prolong the service life of the motor
Artificial Intelligence Algorithm
Every time the fingerprint is unlocked, the chip will continuously reduce the rejection rate and improve the pass rate through fingerprint splicing, image recognition, and self-learning algorithms.
Virtual Password,Anti-peeping Unlock
Anti-peep virtual password, enter it casually, as long as one of them is correct. Safe and Reliable
No Fear Of Small Black Box,To Prevent Electromagnetic Attack
It has the opening ability of anti magnetic and electric field technology to prevent Tesla coil from unlocking and effectively improve the safety of locks
Multiple Anti Test ,Opening Alarm , Continuous Input Error, Automatic Locking
Multiple anti trial opening alarm, continuous wrong operation of password/fingerprint/ card, and the system will lock automatically
Use 4pcs AAA 1.5V Battery
Please use the not rechargeable Alkalin battery. (battery not include in the package)
Not Afraid Of No Electricity;USB + Key Double Support
If the fingerprint lock has no power, it can be unlocked with mobile power supply or mechanical key

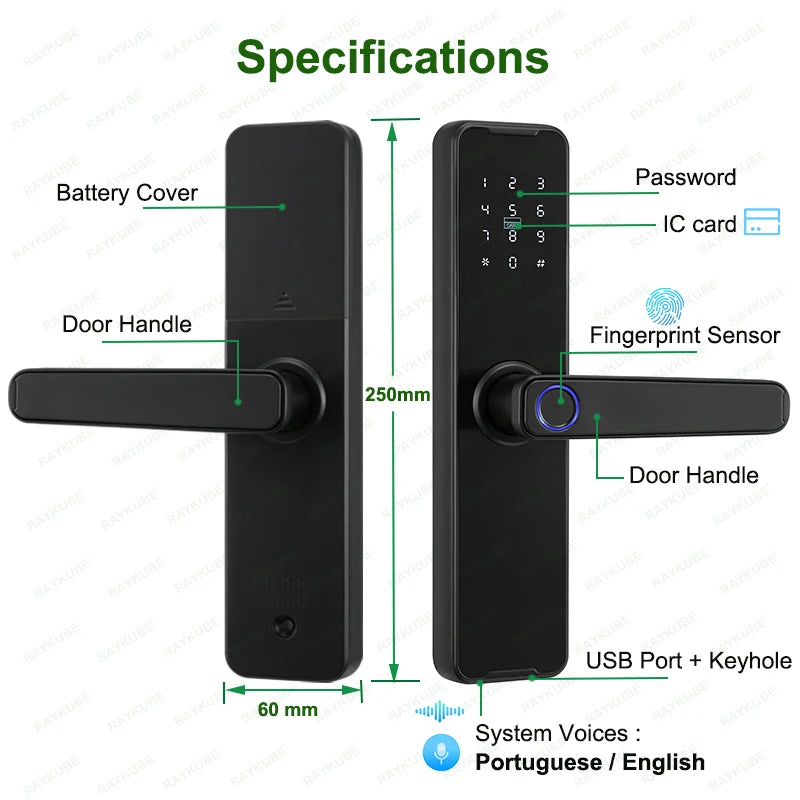

Specifications:
- Model: K7 Pro+
- System: Tuya Bluetooth 4.0
- Material: Aluminium Alloy
- Unlock modes: Tuya APP / Fingerprint / Password / Smart card / Key
- Fingerprint read: FPC Sensor (Semiconductor Sensor)
- Color: Black / Red Bronze
- User(fingerprint/card/password): Total 99
- Chip Type: Dual Core Driver
- Touch screen: IML Material
- Working power: 4 x AAA 1.5V batteries (not include)
- Operating temperature: -20 to 55 Centigrade
- Password function: support virtual password
- Suit for the door thickness about 35-55mm
-
Installation Video

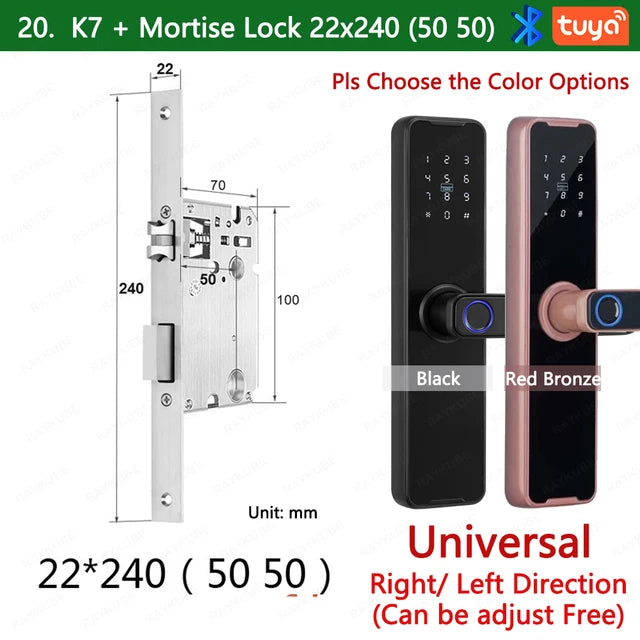

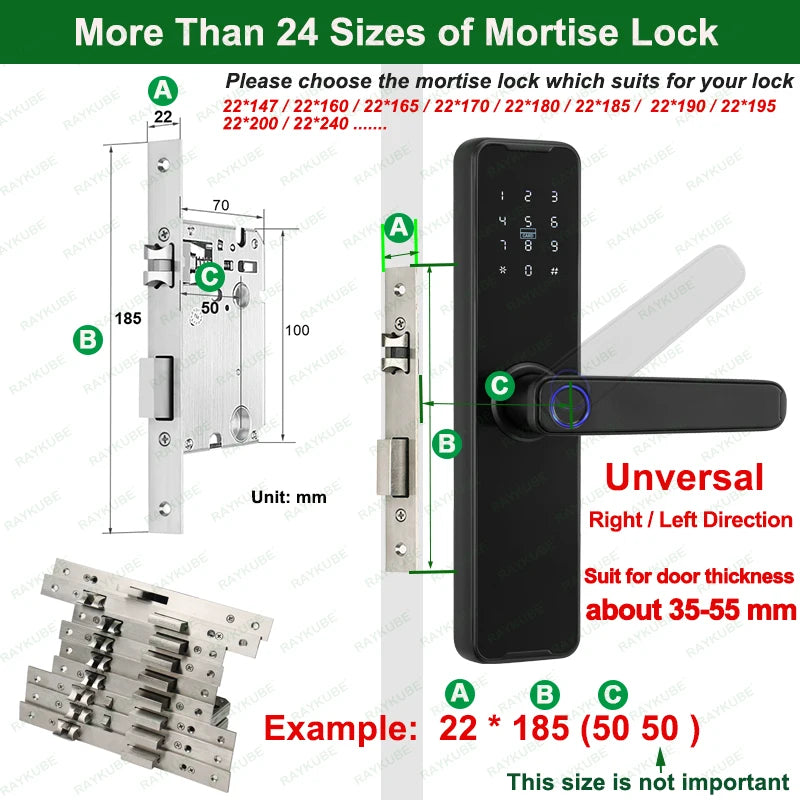

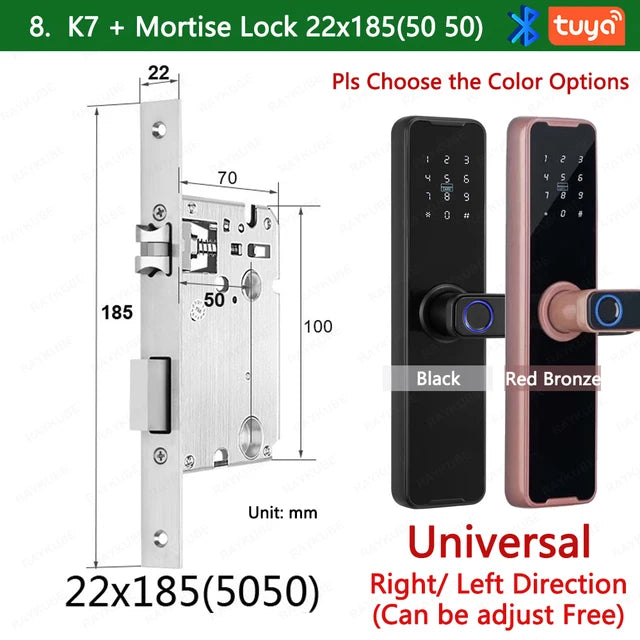

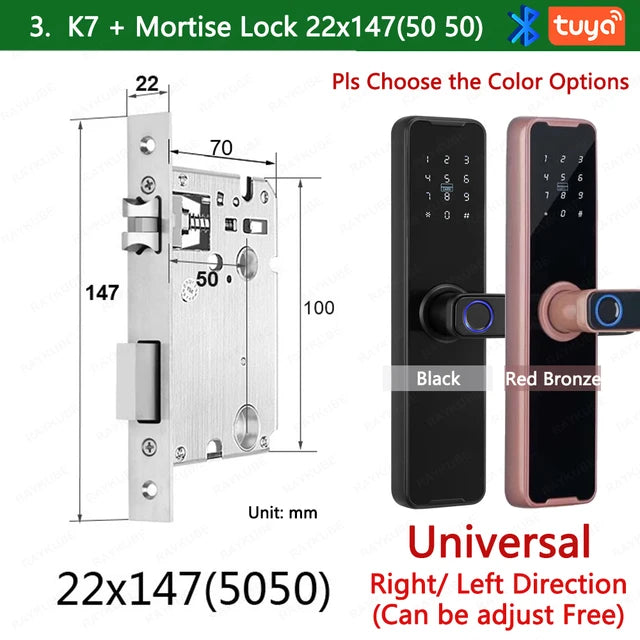

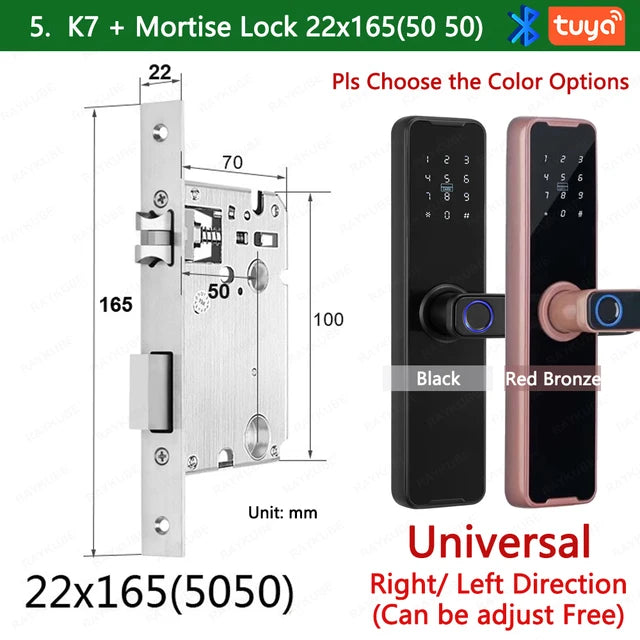

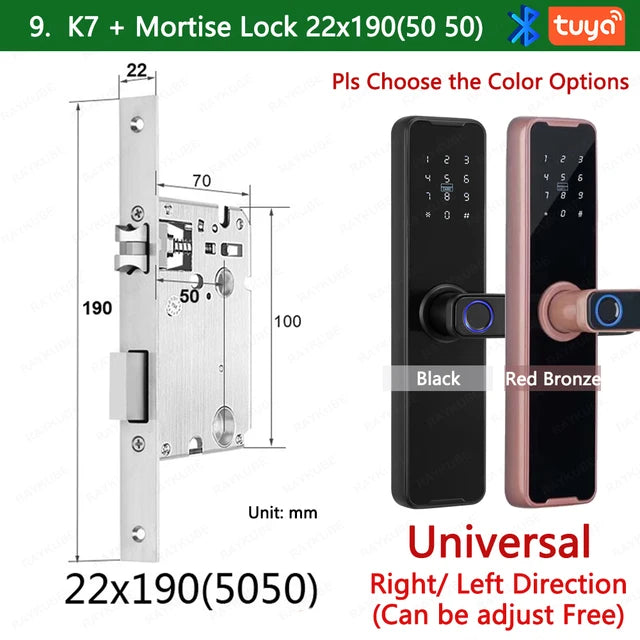

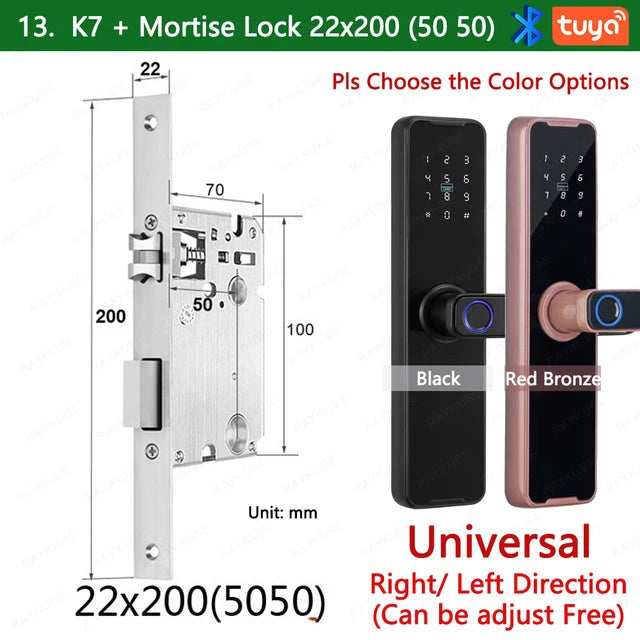

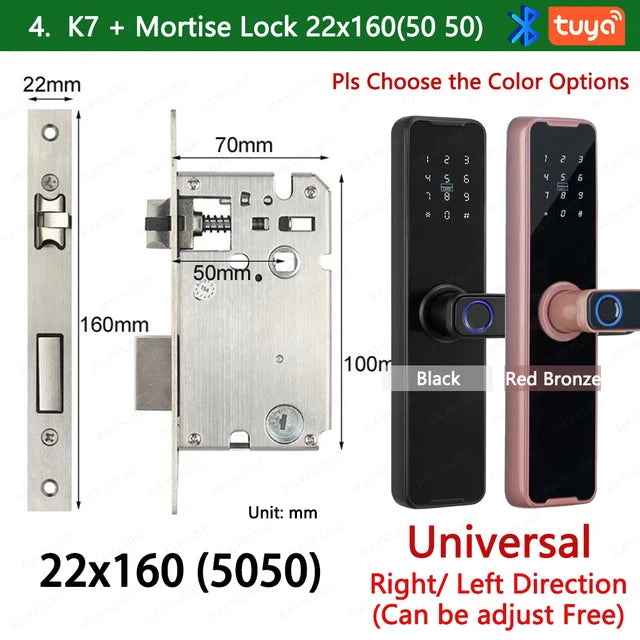

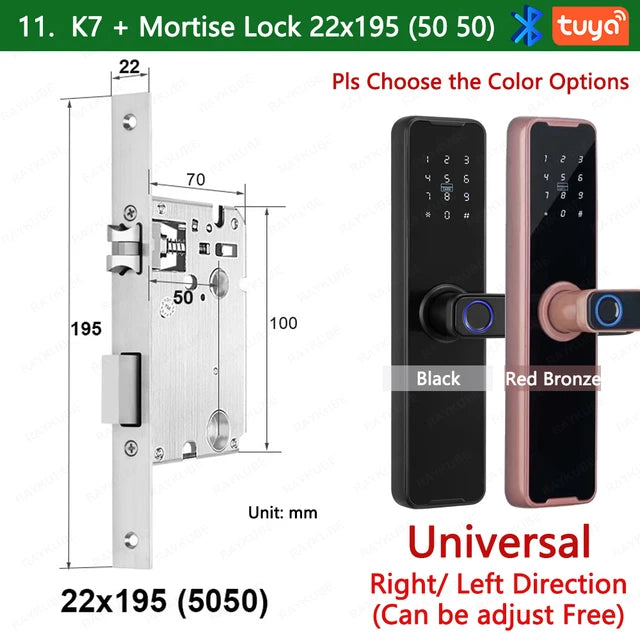

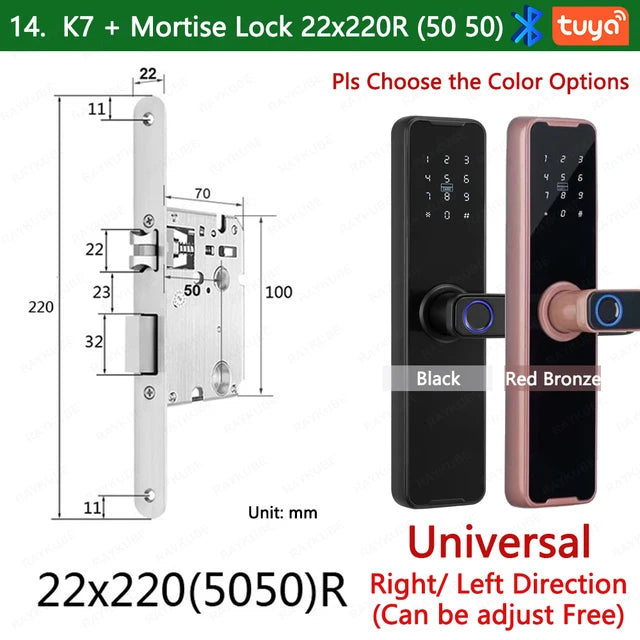

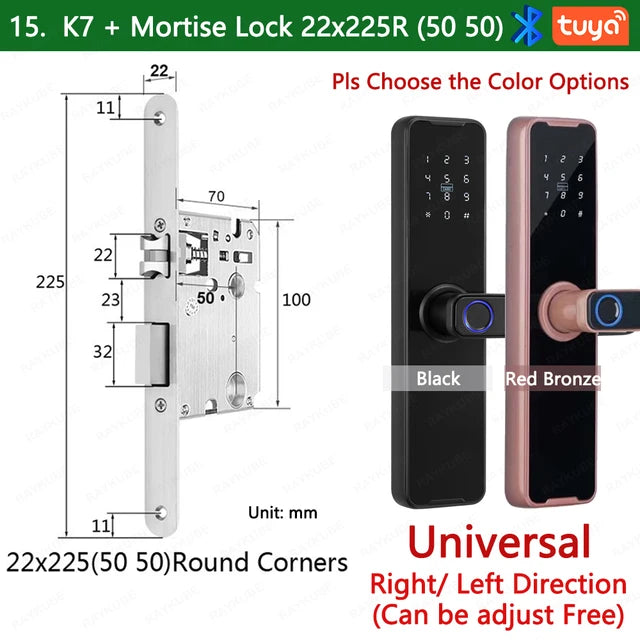

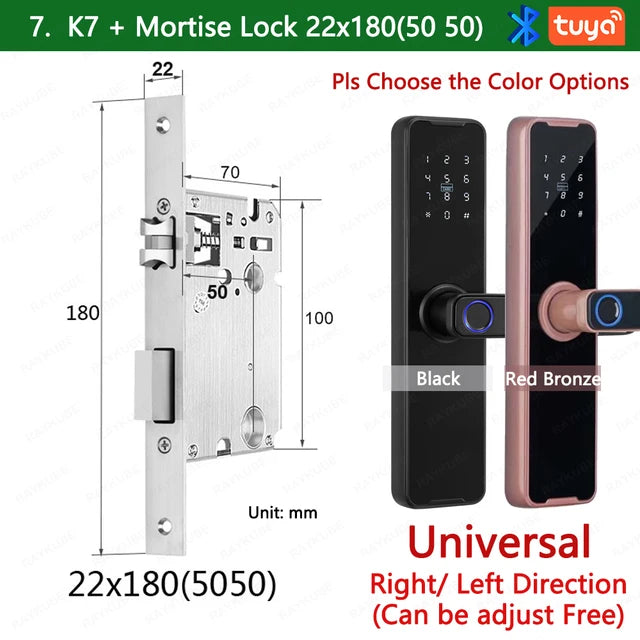

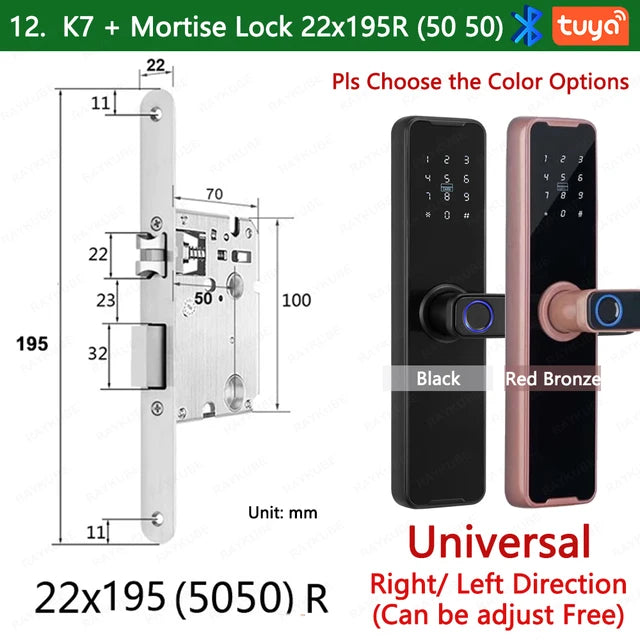

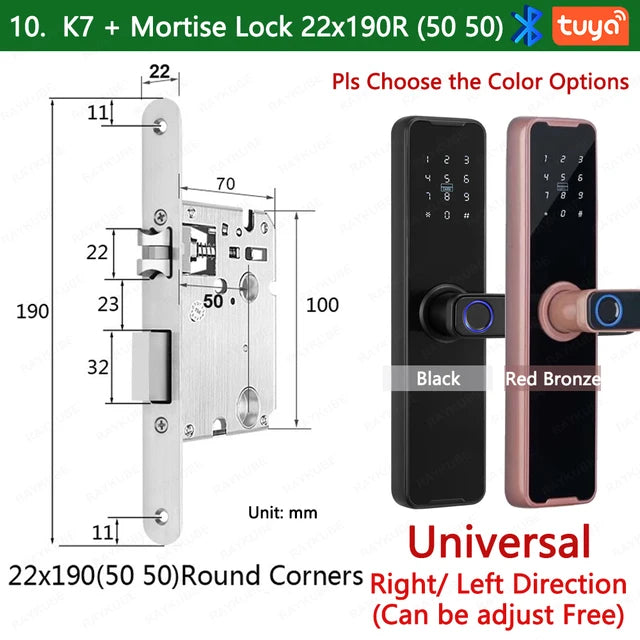

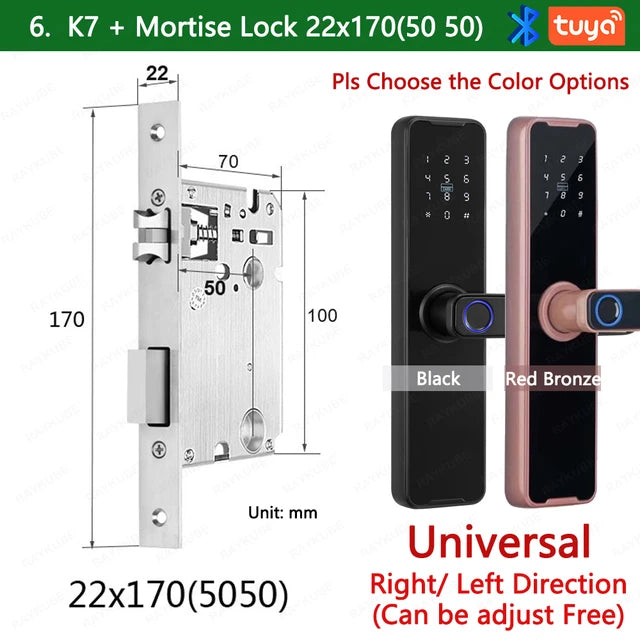

How to select the correct mortise lock size
We have over 24 different mortise lock size for choose, so please measure the old lock size follow this picture that you would know which size suit for your door. (once you select the correct size, you will very easy to replace the old lock)
About Installation
This lock suit for the door thickness 35-55mm door thickness.
Please measure your old mortise lock size, and check our all options different mortise lock size which one suit for your door. That will more easy replacement.
Item Include
Front panel x 1
Rear panel x 1
Mortise lock x 1(options)
Smart card x 5
Mechanical Key x 2
Screw Kit x 1
